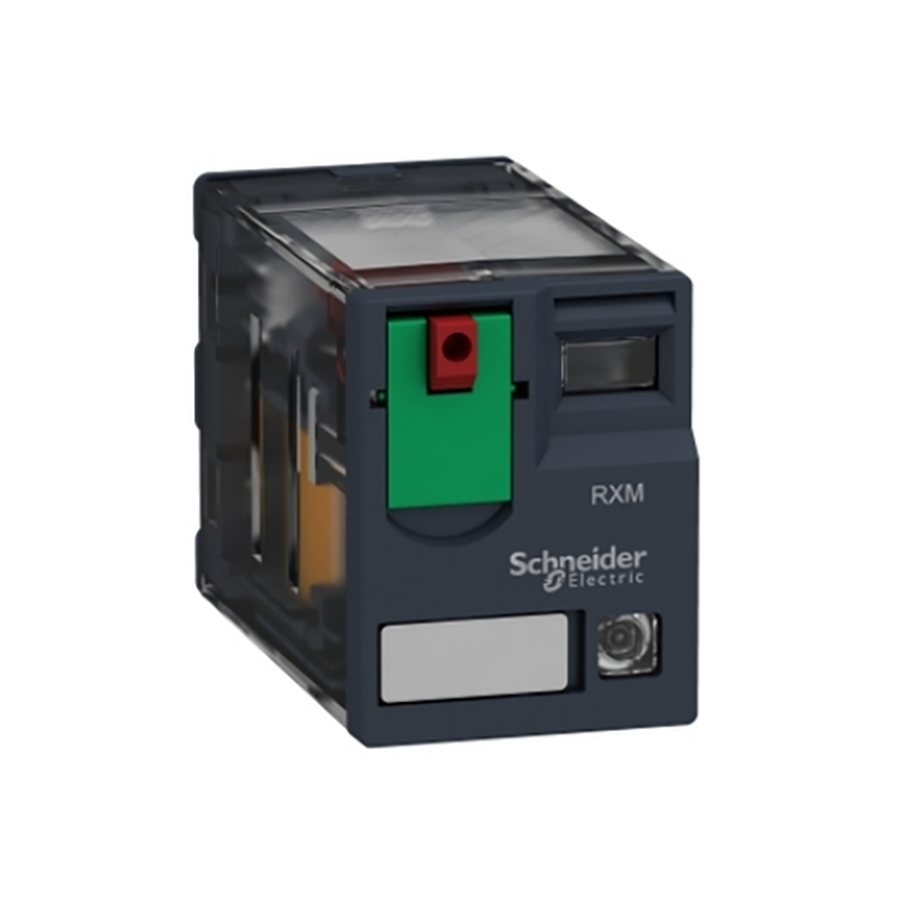

RXM4GB2E7
Manufacturer:
Schneider Electric
Mfr.Part #:
RXM4GB2E7
Datasheet:
Description:
Power Relays Socketable 67.6 mA General Purpose
| Parameter | Value |
|---|---|
| Length | 27 mm |
| Width | 21 mm |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Height | 40 mm |
| Packaging | Box |
| RoHS | Compliant |
| Features | Lighted Indicator, Test Button |
| Contact Material(Contact Finish) | Silver (Ag), Gold (Au) |
| Coil Current | 67.6 mA |
| Coil Type | Non-Latching |
| Relay Type | General Purpose |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Contact Current Rating | 3 A |
| Termination Style | Plug In |
| Switching Voltage | 250 VAC, 28 VDC |
| Coil Voltage (AC) | 48 V |
| Must Operate Voltage | 38.4 V |
| Must Release Voltage | 7.2 V |
Stock: 6
Distributors
pcbx
pcbxUnit Price$6.90488
Ext.Price$6.90488
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.90488 | $6.90488 |
